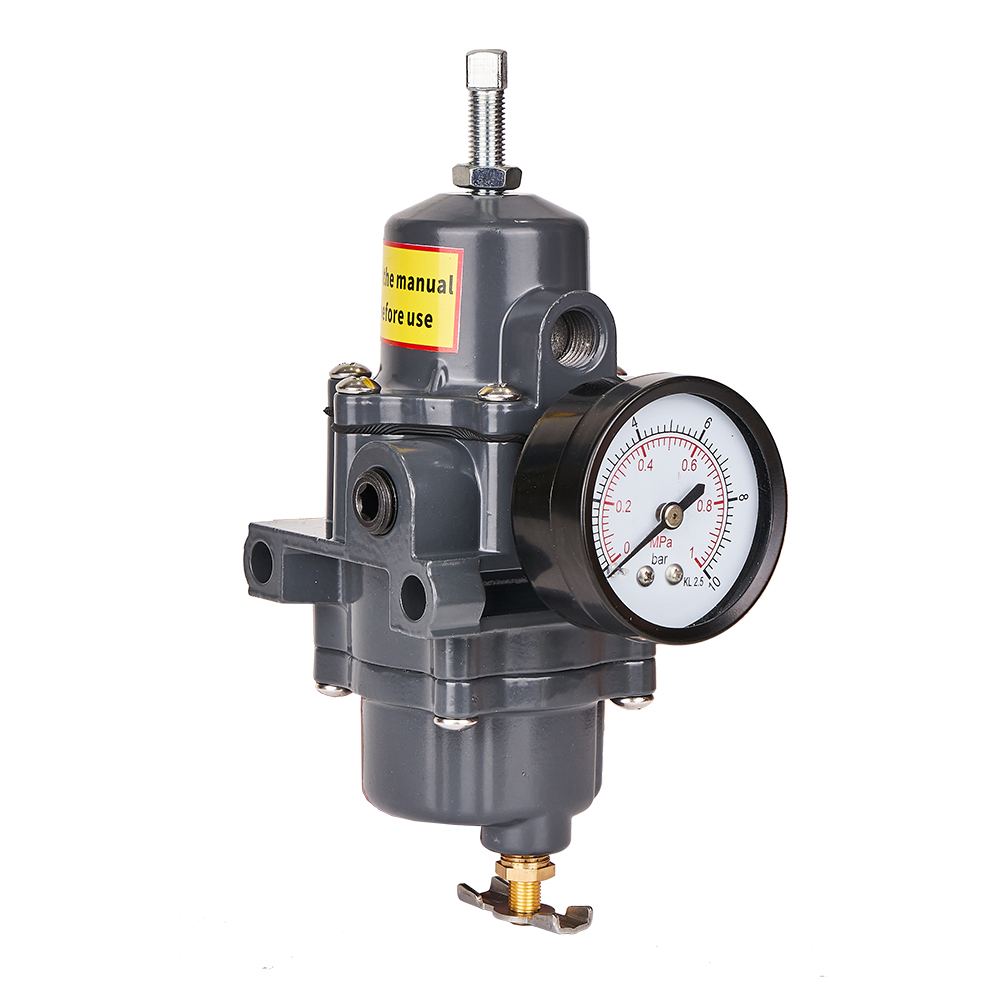

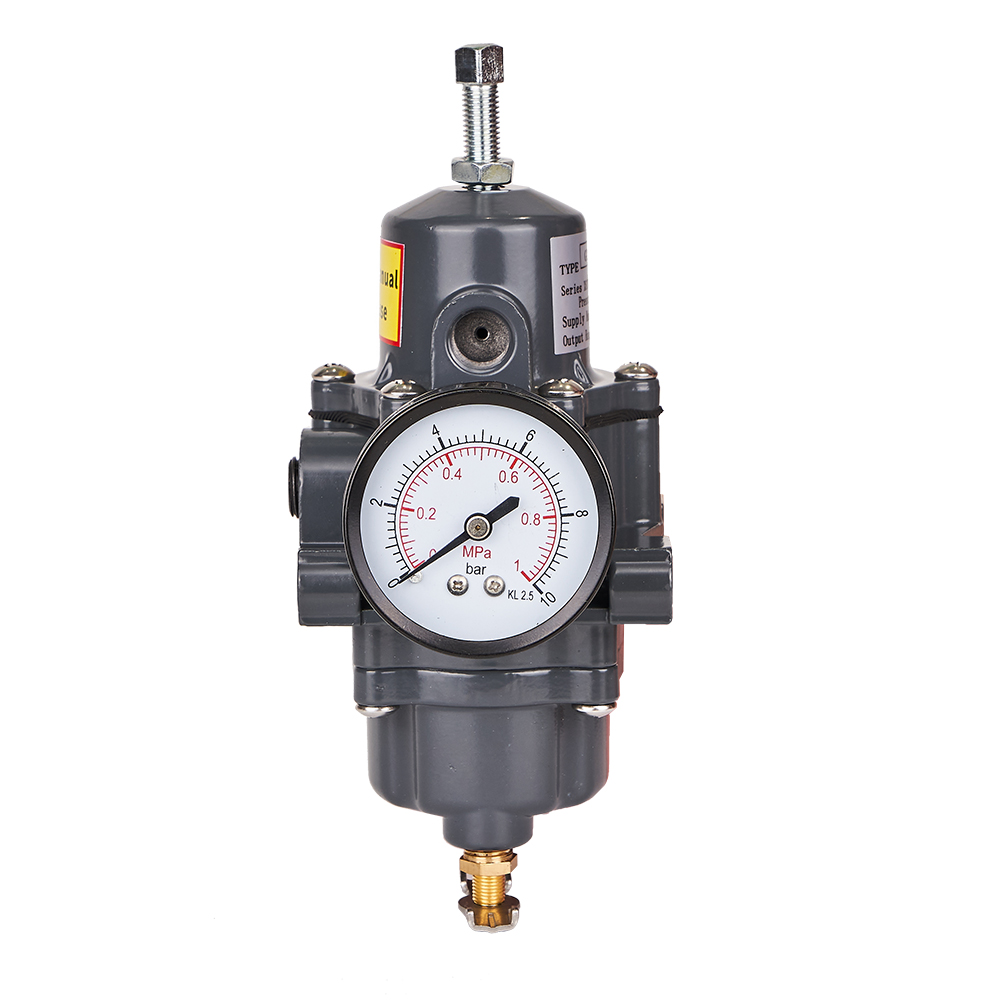

X67 SERIES REGULATOR
Features
• Rugged, Compact & Lightweight Construction
• Cost Effective
• Internal Relief
• Filtered and Non-Filtered Options
• Filtered Unit, Panel Mount Standard
• Filtered Unit, 40 Micron Cellulose
• Spring Case Vent Standard, 1/4' FNPT
• Three Output Ranges (See Table 1)
• Easy In-line Maintenance
• Dual Outlets
Inlet Supply Pressure:250 psi Max.
Technical Data
Four Output Ranges: 0-35 psig(0-2.4bar)
0-60 psig(0-4.1bar)
0-125 psig(0-8.6bar)
Port Sizes : 1/4" FNPT
Temperature : -4 F to 180 F
Body Material : Diecast Aluminum
