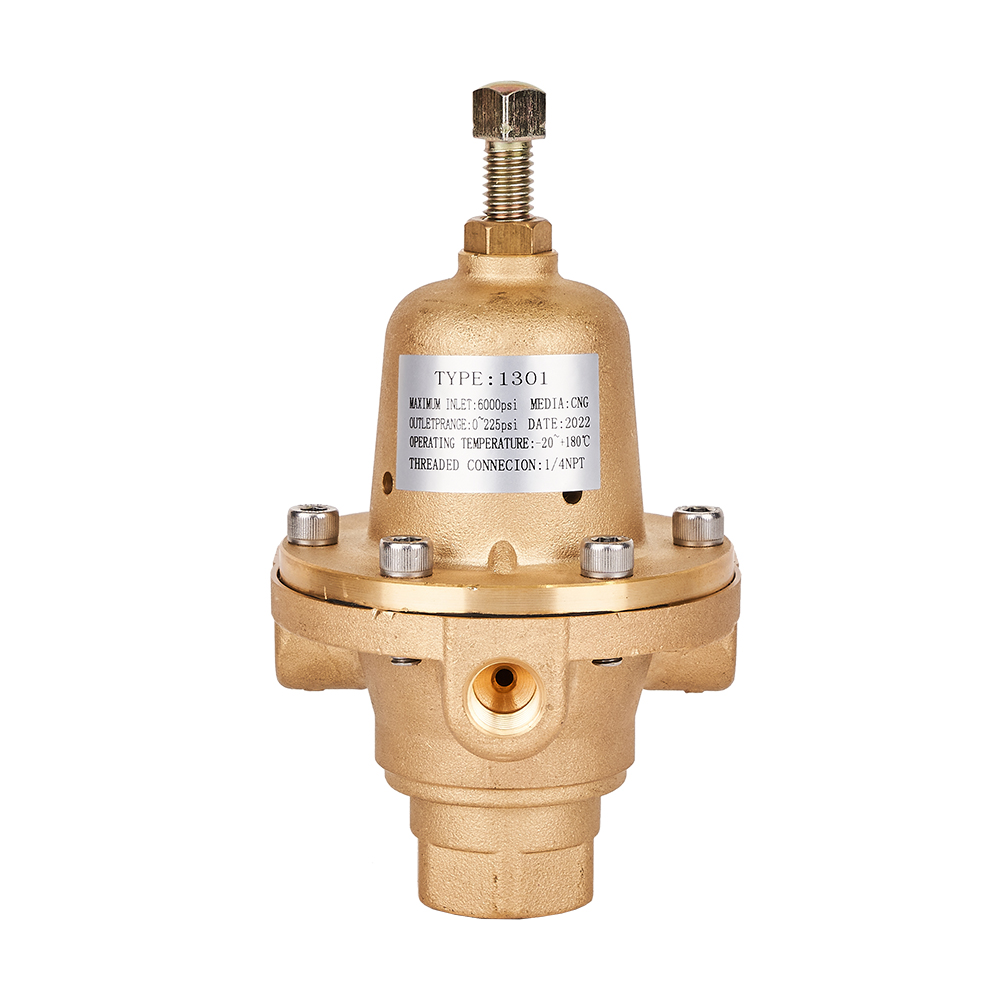

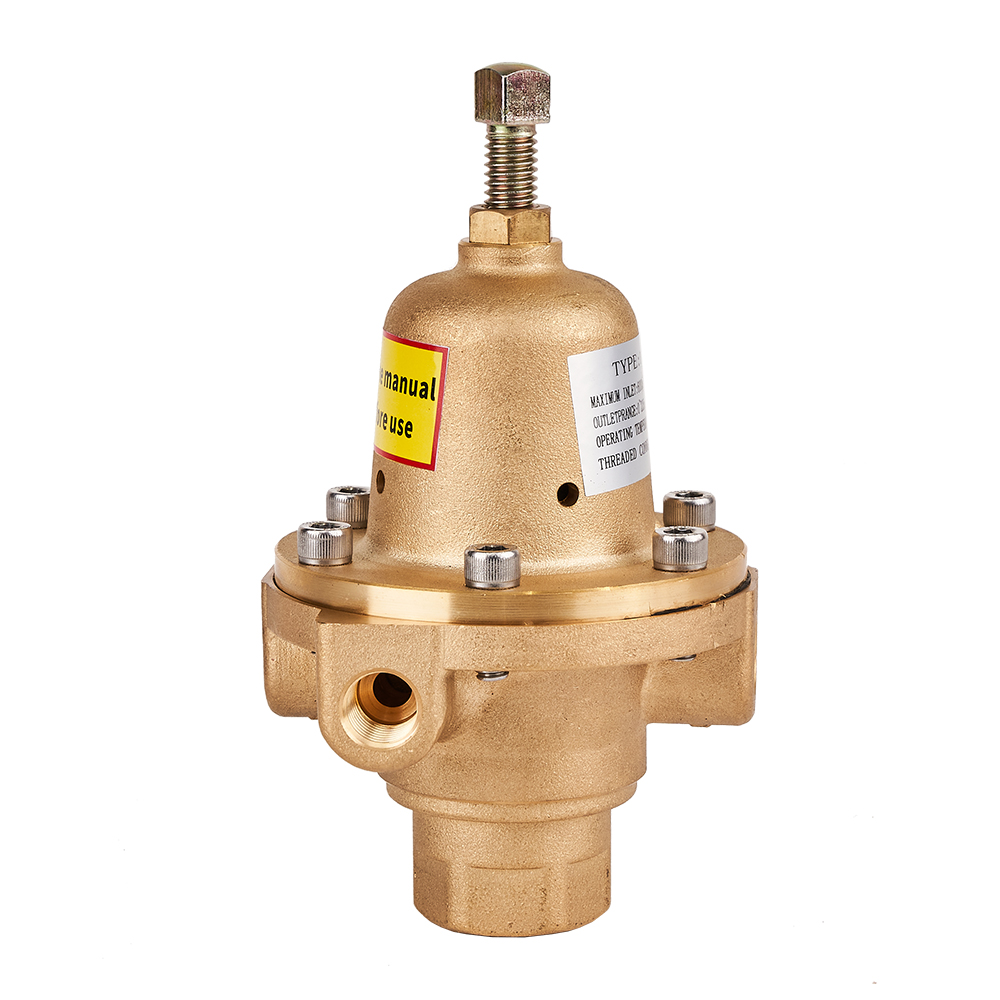

1301 SERIES REGULATOR

Short Description:

1301 series Compactly designed structure with overall cast copper valve body makes it reliable and safe. Convenient inlet and outlet are installed with international standard NPT 1/4″ connection. Max inlet pressure is 6000 PSI. Good and sensitive shut off valve enhanced the safety well. Apply to multiple kinds of liquid or gas. With a wide working temperature range: from -46°C to 106°C.

Send email to us Preview Sample

Product Detail

Product Tags

1301 SERIES REGULATOR

Technical Data

Technical Data
Max. inlet pressure: 6000 PSI
Outlet connection: 1/4" NPT
Inlet connection: 1/4" NPT
Air outlet: 1/4" NPT (3 holes)
Outlet pressure range: 10-75 psig, 0.69-5.2 Bar
50-150psig,3.4-10.3Bar
100-225psig,6.9-15.5Bar
Applied to: CNG and so on
