RFZ25L SERIES RELIEF VALVE

Short Description:

RFZ25L series of relief valve is a safety device used in medium and low-pressure regulator station for gas. The device automatically spread rapidly to keep the pressure in a certain range, so that the pressure will be over a predetermined alarm value and caused any anomalies in the system.

Send email to us Preview Sample

Product Detail

Product Tags

RFZ25L SERIES RELIEF VALVE

Technical Data

Technical Data
Maximum inlet pressure / P1max : 6bar
Relief pressure setting range

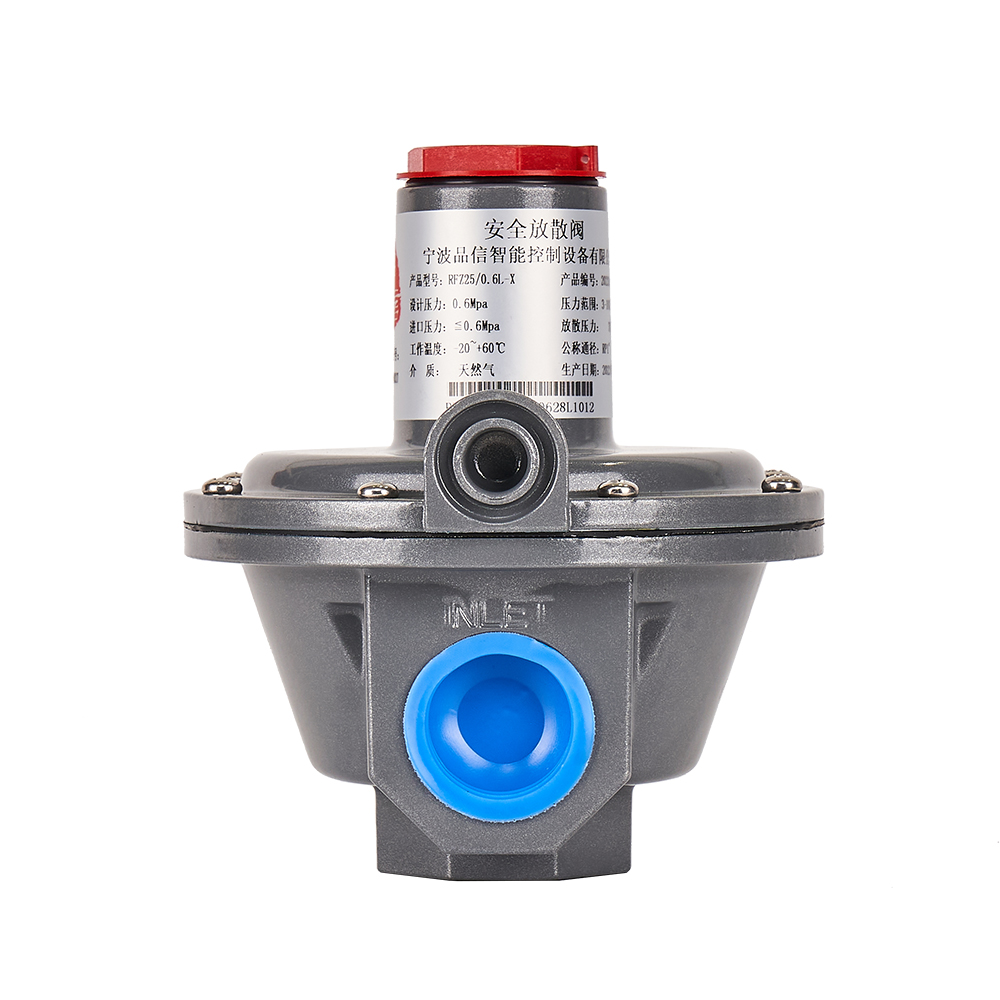

RFZ25L-X : 10~100mbar

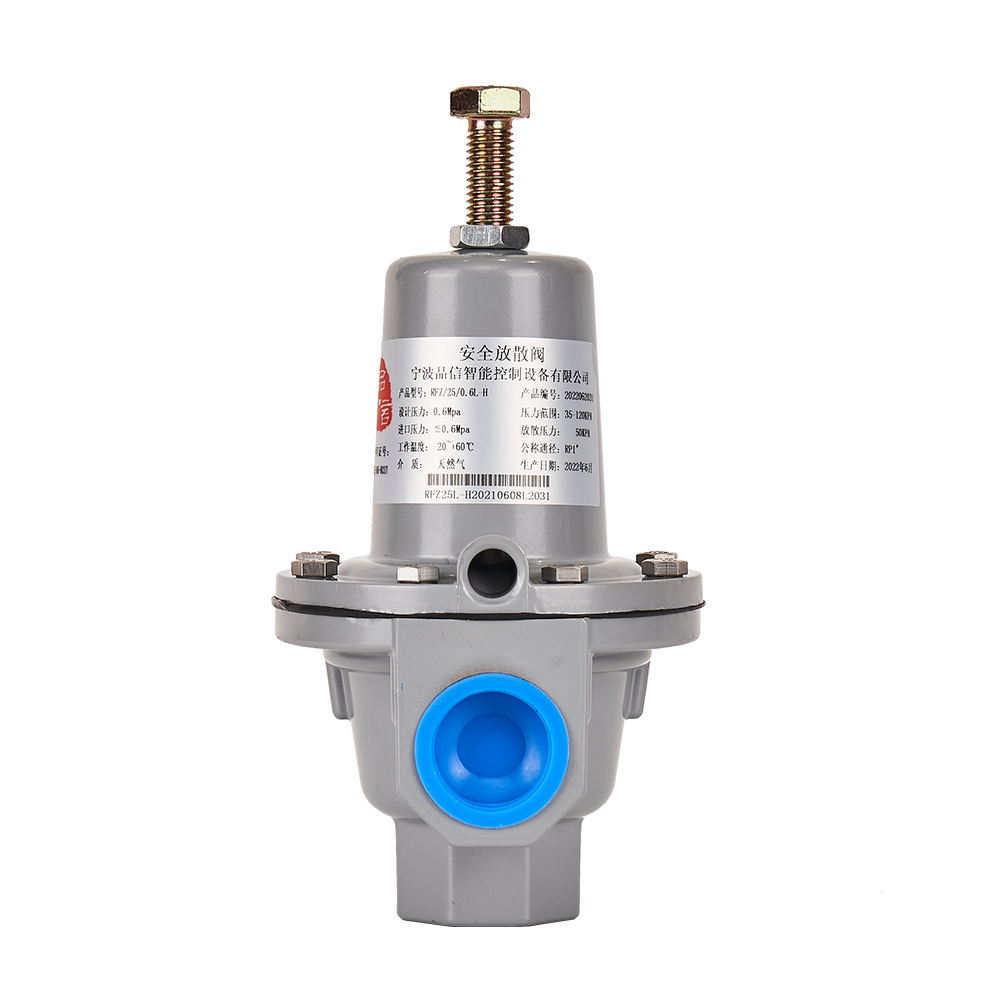

RFZ25L-H : 0.1~6bar
Connection size : Rp1" (right angle connection)
Operating Temperature : -20 ~ + 60°C
Weight : RFZ25L-X : 1 kg
RFZ25L-H : 1.2kg
