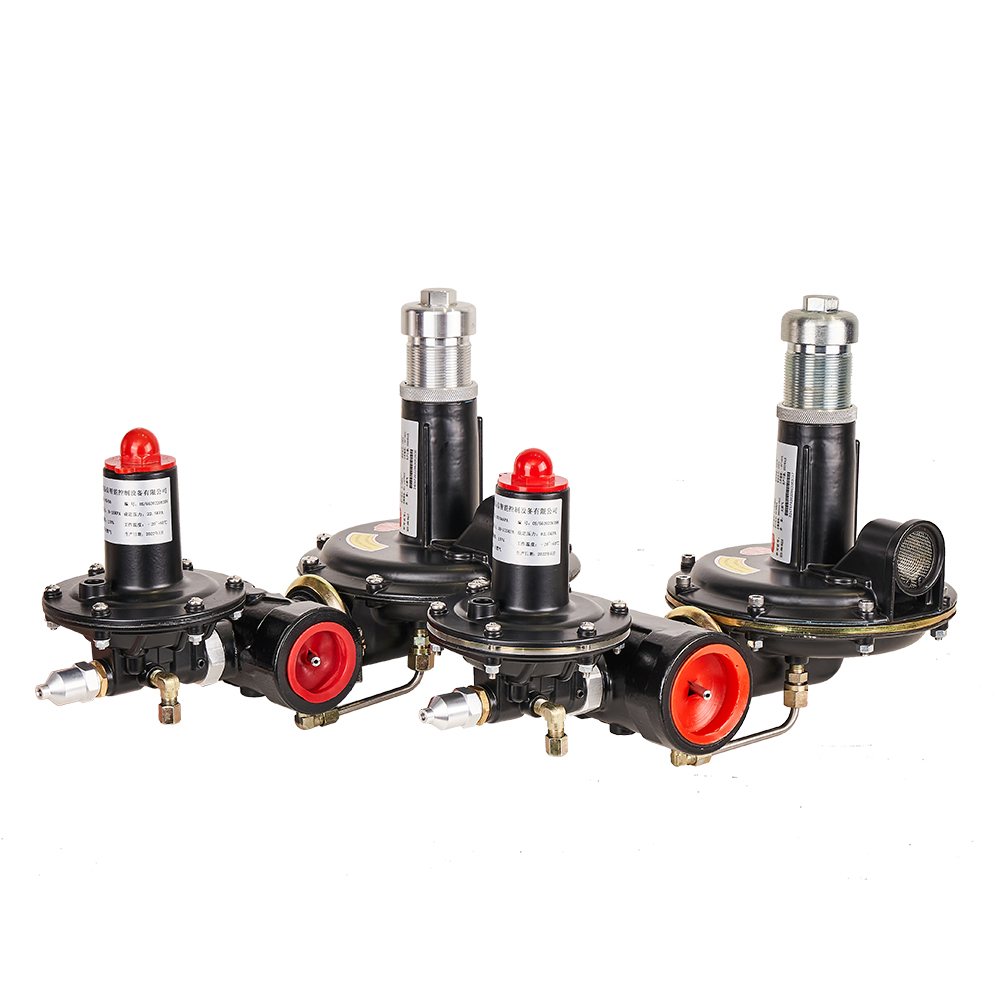

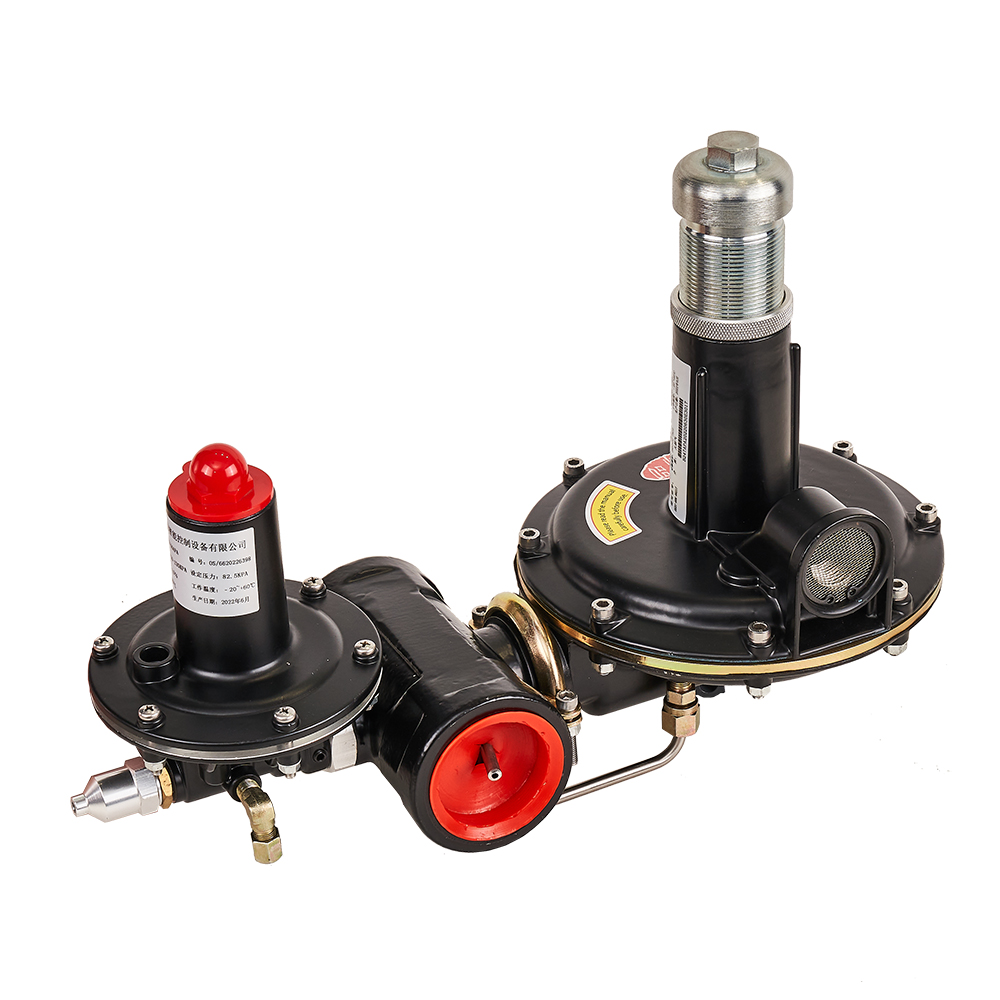

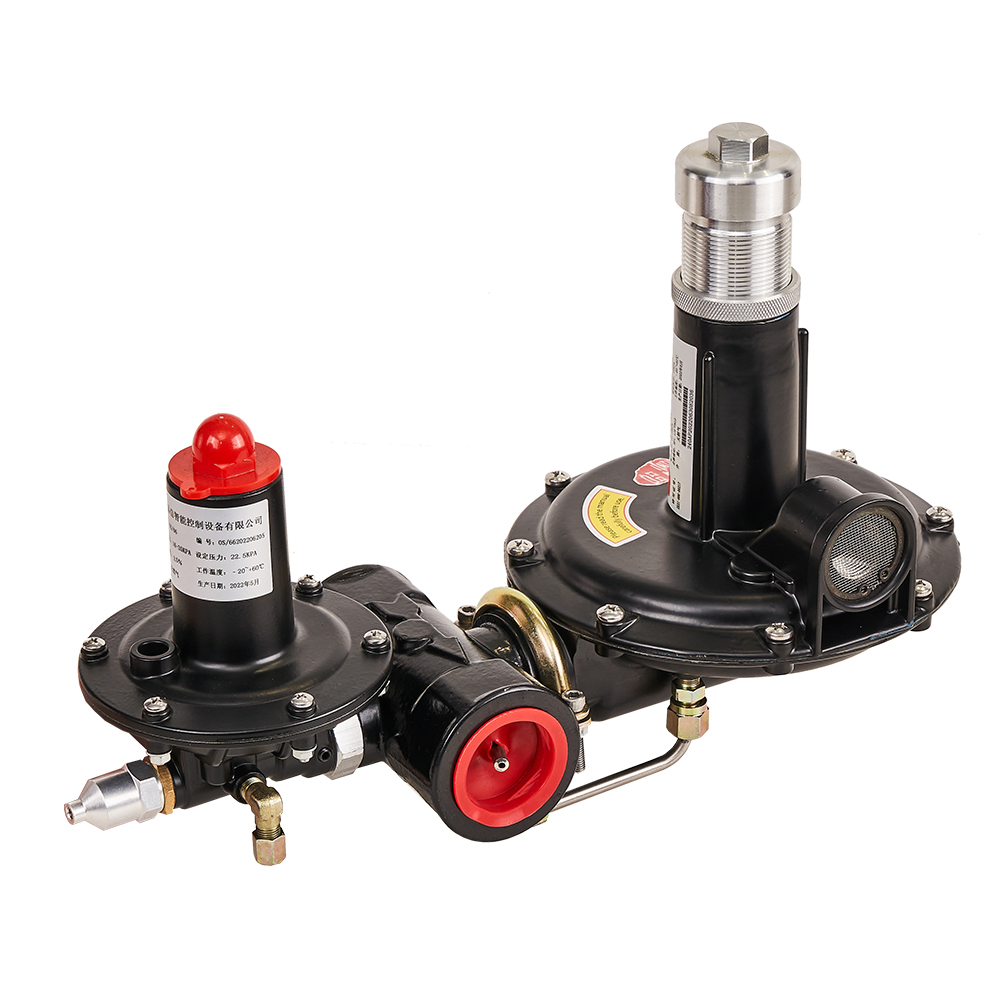

B240 DIRECT ACTING REGULATOR
Technical Data
The technical data of B240 pressure reducing valve:
Maximum inlet pressure / P1max :10bar
Inlet pressure range / 8P1 :0.03-10bar
Outlet pressure range/ P2 : 0.015-2bar
Precision regulator / AC: +5%~‡15%
Cutting accuracy/AQ : <+5%
Lock-up pressure/SG : ≤20%
Response time/ta : <1sec
Maximum flow (NG)/Qmax : 300Nm%
Operating Temperature : -20~ + 60°C
Connection size : RP1 1/2"
Weight / Low pressure type : 4.8kg
/High pressure type : 6kg
