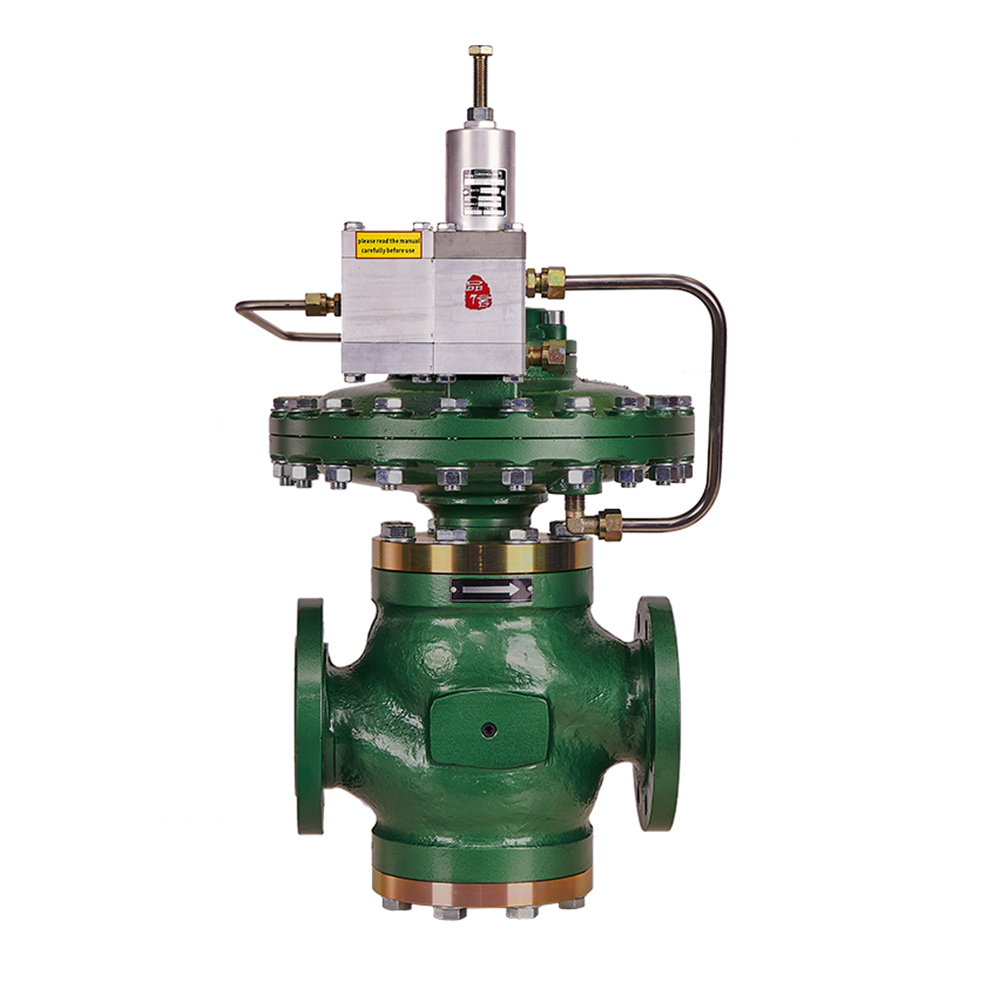

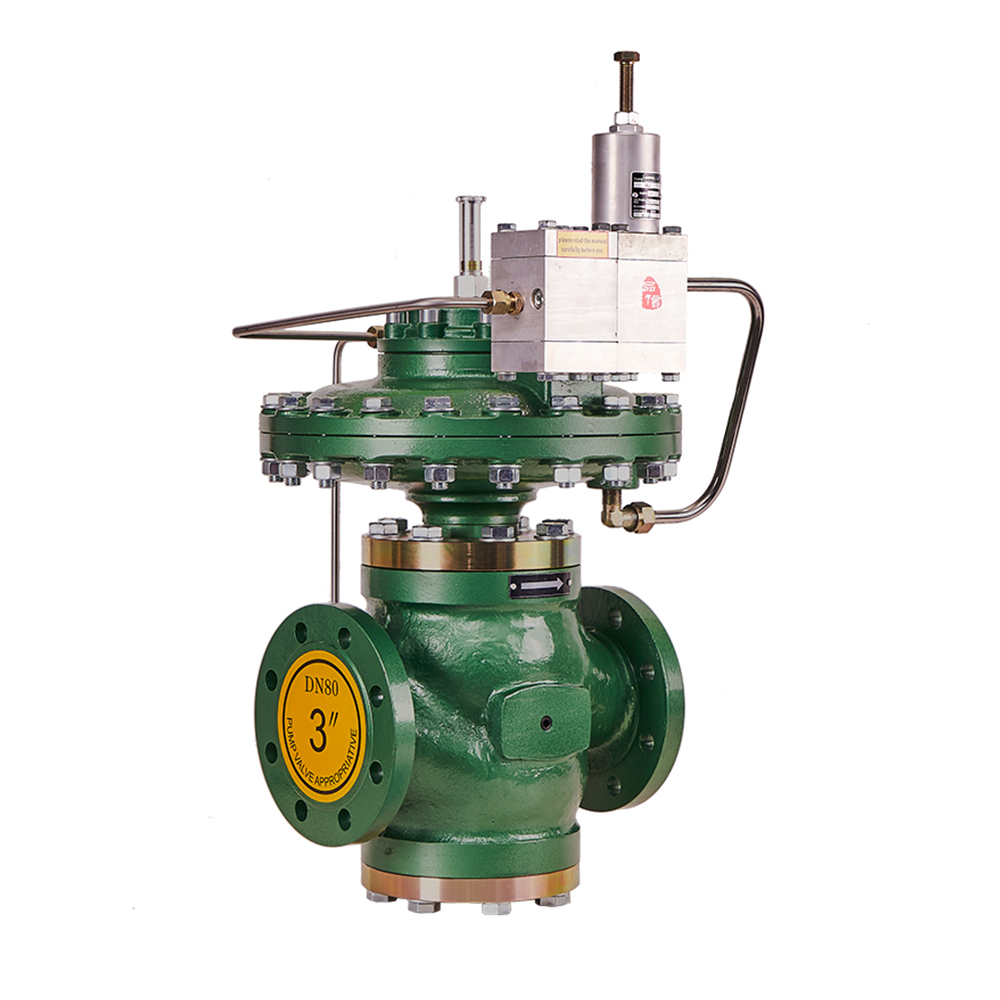

RTJ-PH SERIES PILOT OPERATED REGULATOR

Short Description:

The RTJ-PH series is pilot operated gas pressure regulator, suitable for the working environment that continuously high or medium downstream pressure with high flow needed.

The pilot of the regulator is of two-stage structure, which can reflect the pressure change quickly and accurately.

RTJ-PH series gas pressure regulators are widely used for the pressure regulation and stabilization of gas pipelines, stations, CNG stations, LNG stations and major or medium-sized industries. Suitable medium: natural gas, artificial coal gas, liquefied petroleum gas and other fuels.


Product Detail

Product Tags

RTJ-PH SERIES PILOT OPERATED REGULATOR

Product features

●Modular structure design with integrated pressure regulating and shutting.
●Actuator and trim component are mounted at the top for easy online maintenance:
●Double stage pilot, accurate outlet pressure adjustment and simple setting.
●Large capacity and wide range of application.
●High sensitivity, fast response and good closing performance.
●Valve position status display.
●Optional configuration: built-in muffler, valve position signal remote transmission device.

Characteristics of the regulator

1. The voltage regulation accuracy class reaches AC1.
2. The closing pressure class reaches SG2.5

Technical Data
Pressure Class PN16(1.6MPa) PN25 (2.5MPa) PN40(4.0 MPa)
Max.pressure (bar) <=16 <=25 <=40
Inlet pressure range(bar) 1~16 1~25 1~40
Outlet pressure range (bar) 0.5~17 0.5~20 0.5~25
Min. pressure difference APmin (bar) 0.5 0.5 0.5
Temperature Capabilities °C -20~60
DN DN50, DN80. DN100. DN150
